2SK669-AC
MOSFET N-CH 50V 100MA 3SPAManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

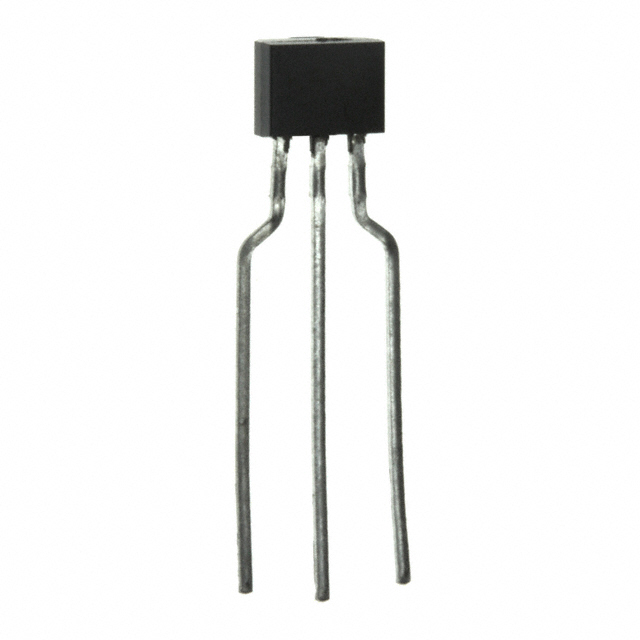

onsemi N-Channel MOSFET, part number 2SK669-AC. This component features a 50V drain-to-source voltage (Vdss) and a continuous drain current (Id) of 100mA at 25°C. The device offers a maximum on-resistance (Rds On) of 20Ohm when driven at 10mA with a 10V gate-source voltage (Vgs). With a power dissipation of 200mW (Ta) and an operating temperature up to 125°C (TJ), it is suitable for applications requiring efficient switching. The input capacitance (Ciss) is a maximum of 15 pF at 10V. This MOSFET is housed in a 3-SPA package, designed for through-hole mounting. Its specifications make it a viable option for various industrial and consumer electronics applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 3-SIP |
| Mounting Type | Through Hole |
| Operating Temperature | 125°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Rds On (Max) @ Id, Vgs | 20Ohm @ 10mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 200mW (Ta) |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | 3-SPA |
| Drain to Source Voltage (Vdss) | 50 V |
| Input Capacitance (Ciss) (Max) @ Vds | 15 pF @ 10 V |
