2SK3747-MG8

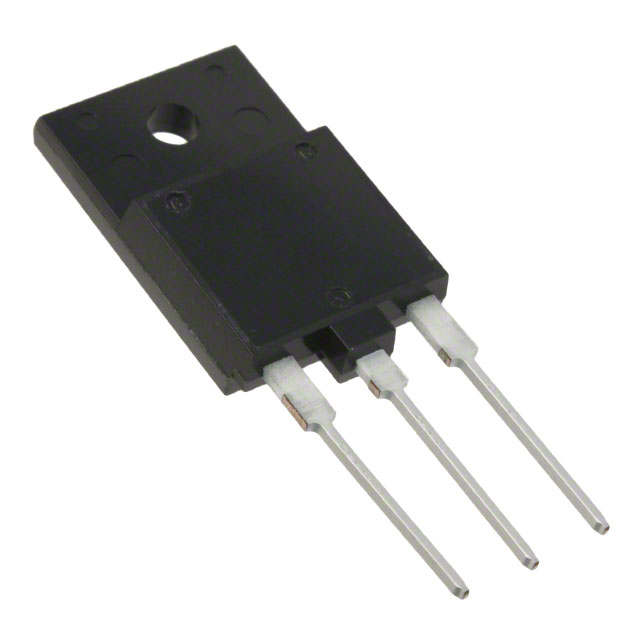

MOSFET N-CH 1500V 2A TO3PMLManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
onsemi 2SK3747-MG8 is a high-voltage N-Channel Power MOSFET designed for demanding applications. This device offers a robust 1500 V drain-source voltage (Vdss) and a continuous drain current (Id) of 2A at 25°C. Key characteristics include a maximum on-resistance (Rds(on)) of 13 Ohms at 1A and 10V gate-source voltage, and a typical gate charge (Qg) of 37.5 nC at 10V. The input capacitance (Ciss) is specified at a maximum of 380 pF at 30V. Packaged in a TO-3PML (TO-3P-3 Full Pack) through-hole configuration, this MOSFET operates efficiently up to a junction temperature of 150°C. It finds utility in power supply units, motor drives, and industrial control systems requiring high breakdown voltage and reliable switching performance.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Rds On (Max) @ Id, Vgs | 13Ohm @ 1A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | TO-3PML |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±35V |
| Drain to Source Voltage (Vdss) | 1500 V |
| Gate Charge (Qg) (Max) @ Vgs | 37.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 380 pF @ 30 V |
