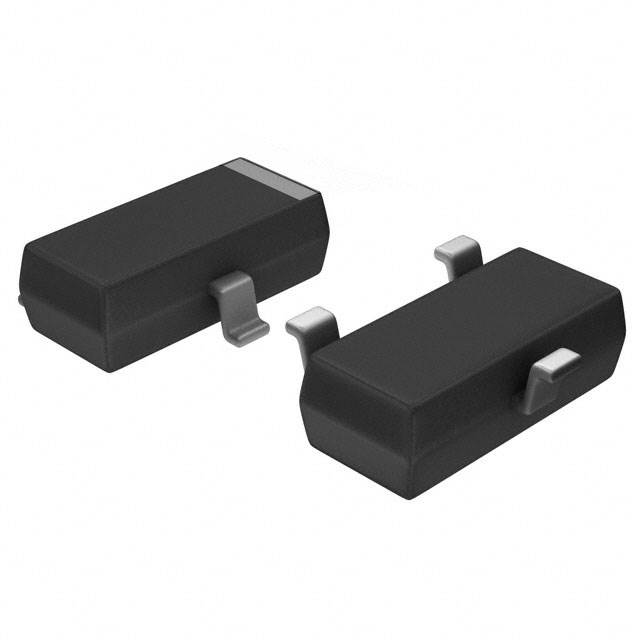

2N7002_L99Z
MOSFET N-CH 60V 115MA SOT-23Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi 2N7002-L99Z is an N-Channel MOSFET designed for surface mount applications. This component features a Drain-to-Source Voltage (Vdss) of 60V and a continuous Drain Current (Id) of 115mA at 25°C. Its low on-resistance, with a maximum of 7.5 Ohms at 500mA and 10V Vgs, makes it suitable for switching and amplification tasks. The SOT-23-3 package offers a compact footprint, ideal for space-constrained designs. With a maximum power dissipation of 200mW (Ta) and an operating temperature range of -55°C to 150°C, it is well-suited for use in industrial automation, consumer electronics, and automotive applications. The input capacitance (Ciss) is a maximum of 50 pF at 25V.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 115mA (Ta) |
| Rds On (Max) @ Id, Vgs | 7.5Ohm @ 500mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 200mW (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | SOT-23-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 25 V |
