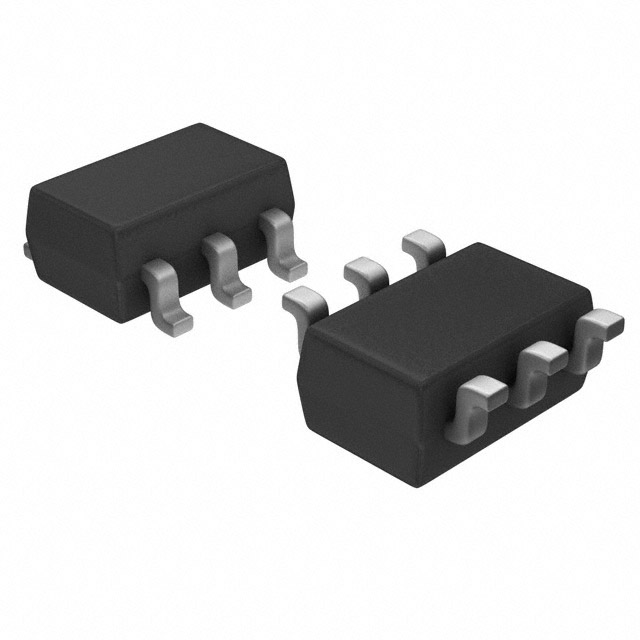

SS3003CH-TL-W
DIODE SCHOTTKY 30V 3A 6CPHManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
The onsemi DIODE SCHOTTKY 3A 30V SOT-23-6 (SS3003CH-TL-W) is a surface-mount Schottky diode designed for efficient rectification. It features a maximum forward voltage of 420 mV at 3 A and a reverse leakage of 1.4 mA at 15 V. With a capacitance of 880 pF at 0 V and 1 MHz, this component is suitable for applications requiring fast switching, indicated by its reverse recovery time of 20 ns. The operating junction temperature range is -55°C to 125°C. This diode is commonly utilized in power supply circuits, battery charging systems, and automotive electronics. It is supplied in a 6-CPH package on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 20 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 880pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | 6-CPH |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 420 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 1.4 mA @ 15 V |
