SBRD8350G
DIODE SCHOTTKY 50V 3A DPAKManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi SBRD8350G, a SWITCHMODE™ series Schottky Rectifier, offers a 50V reverse voltage and 3A average rectified current capability. This DPAK (TO-252-3) surface mount component features a low forward voltage of 600mV at 3A and a reverse leakage of 200µA at 50V. Designed for efficient power rectification, it operates within a junction temperature range of -65°C to 175°C. The SBRD8350G is suitable for applications in power supplies, automotive systems, and industrial equipment requiring high-efficiency rectification. Its compact DPAK package facilitates efficient thermal management and board space utilization.
Additional Information
Series: SWITCHMODE™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

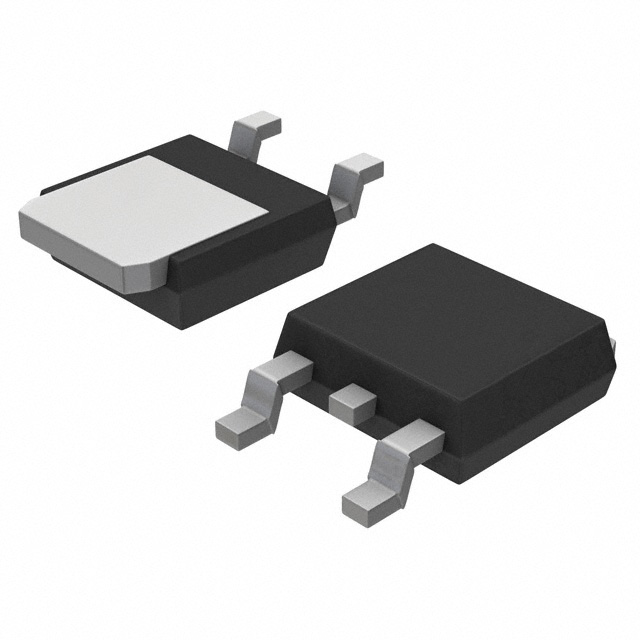

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DPAK |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 50 V |
