SB10-05A3-AT1
DIODE SCHOTTKY 50V 1A DO41Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

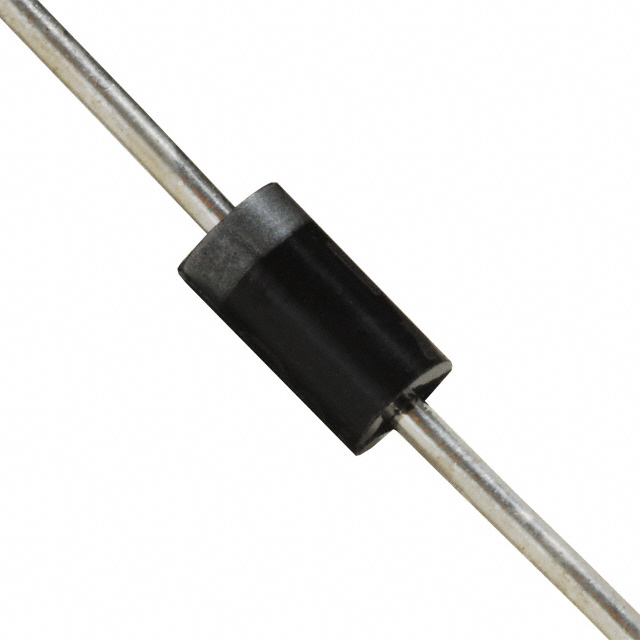

onsemi SB10-05A3-AT1 is a Schottky barrier rectifier with a 50V reverse voltage rating and 1A average forward current. This through-hole component, packaged in a DO-41 (DO-204AL) axial case, features a maximum forward voltage drop of 580mV at 1A and a reverse leakage of 1mA at 50V. The device operates up to a junction temperature of 125°C and offers a reverse recovery time of 30ns, classifying it as a fast recovery diode. This component is suitable for applications in power supply rectification, reverse polarity protection, and general-purpose switching in industrial and consumer electronics. The SB10-05A3-AT1 is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 580 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 50 V |
