SB10-03A3-AT1
DIODE SCHOTTKY 30V 1A DO41Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

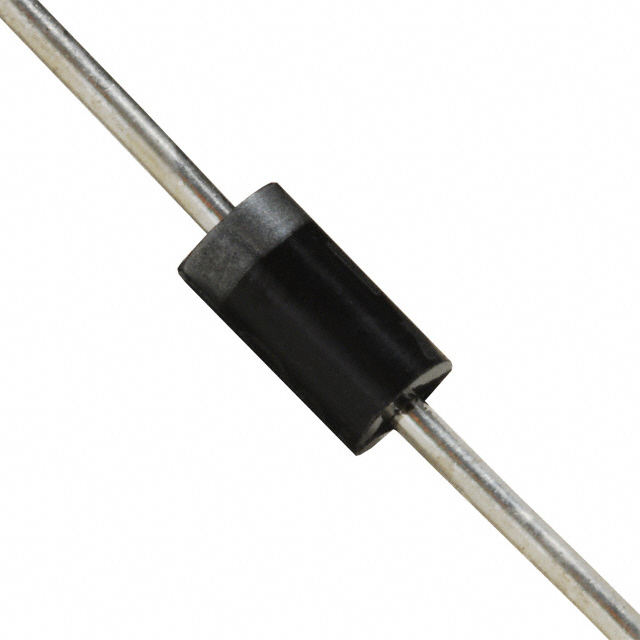

onsemi SB10-03A3-AT1 is a Schottky diode designed for efficient rectification. This component features a 30V reverse voltage capability and a 1A average rectified forward current. Its forward voltage drop is a maximum of 550mV at 1A, and it exhibits a reverse leakage current of 1mA at 30V. The diode has a reverse recovery time of 30ns, categorizing it within the fast recovery speed range. Packaged in an axial DO-41 (DO-204AL) case, it is suitable for through-hole mounting. The operating junction temperature can reach up to 125°C. This device is commonly utilized in power supply circuits, voltage clamping applications, and general-purpose rectification across various industrial sectors. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 30 V |
