S3DB
DIODE GEN PURP 200V 3A DO214AAManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

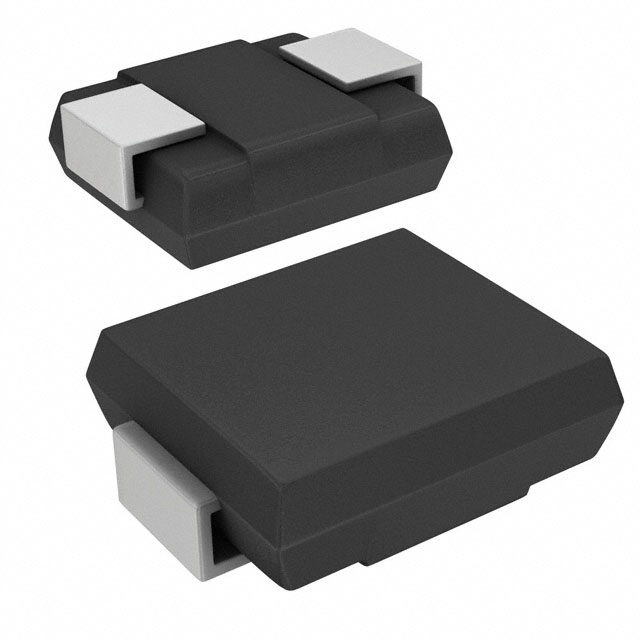

Diode 200 V 3A Surface Mount DO-214AA (SMB)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | DO-214AA, SMB |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.5 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 18pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DO-214AA (SMB) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Qualification | AEC-Q101 |
