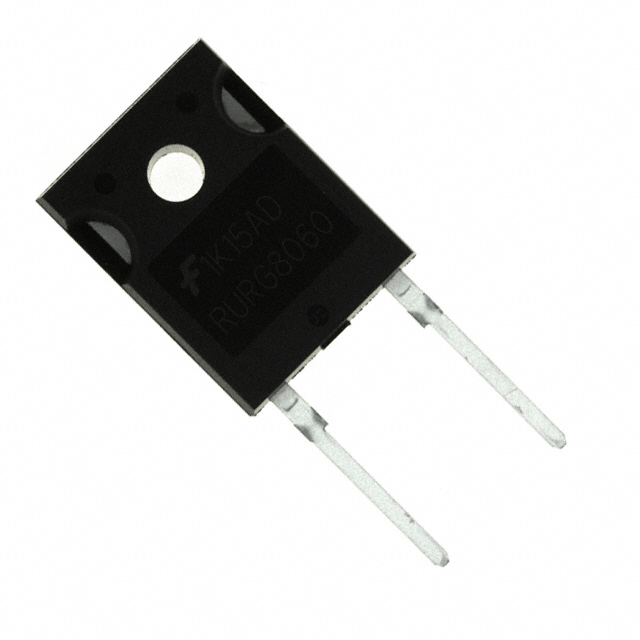

RURG8060
DIODE GEN PURP 600V 80A TO247-2Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi RURG8060 is a 600V, 80A general-purpose diode. This through-hole component, packaged in a TO-247-2, offers a maximum forward voltage of 1.6V at 80A and a reverse leakage of 250 µA at 600V. Featuring fast recovery (85 ns reverse recovery time), this device is suitable for applications requiring efficient power switching. Its operating junction temperature range is -65°C to 175°C. The RURG8060 is utilized in power supplies, motor control, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 85 ns |
| Technology | Avalanche |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 80A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 80 A |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V |
