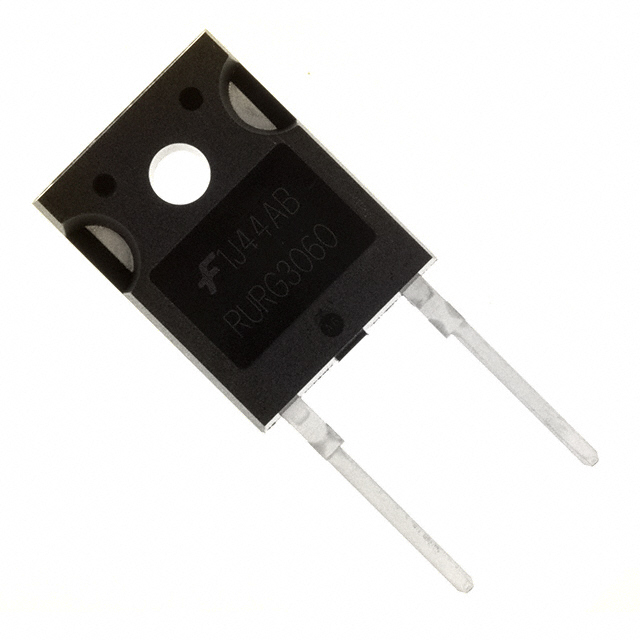

RURG3060
DIODE GEN PURP 600V 30A TO247-2Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi RURG3060 is a 600V, 30A fast recovery diode designed for general-purpose applications. This through-hole component, packaged in a TO-247-2, features a maximum forward voltage of 1.5V at 30A and a reverse leakage of 250µA at 600V. The diode exhibits a reverse recovery time (trr) of 60 ns, classifying it within the fast recovery speed category. Operating across a junction temperature range of -65°C to 175°C, this avalanche technology diode is suitable for power supply, industrial motor control, and automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns |
| Technology | Avalanche |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 30 A |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V |
