PCFF60H120SWF
1200V/75A GEN7 FRD HS SAWN-ON-FOManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
The onsemi PCFF60H120SWF is a high-performance diode designed for demanding applications. This surface mount component, supplied on a wafer, features a 1200V reverse voltage rating and a 60A average rectified forward current capability. Its fast recovery speed, with a typical reverse recovery time of 246 ns, makes it suitable for power switching circuits. The forward voltage drop is a maximum of 2.08V at 60A, and it exhibits a low reverse leakage of 10 µA at its maximum reverse voltage. Operating across a junction temperature range of -40°C to 175°C, this diode is utilized in industries such as industrial power supplies, electric vehicle charging, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |

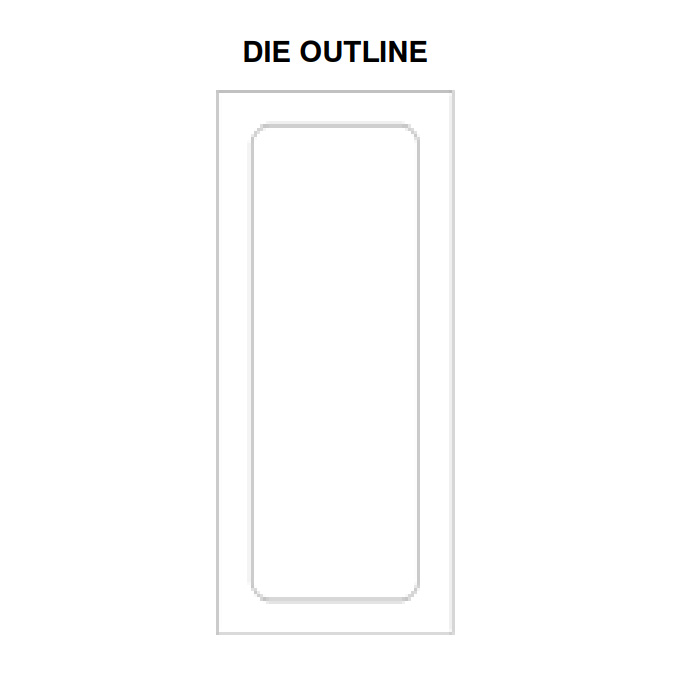

| Package / Case | Die |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 246 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 60A |
| Supplier Device Package | Wafer |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 2.08 V @ 60 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1200 V |
| Qualification | - |
