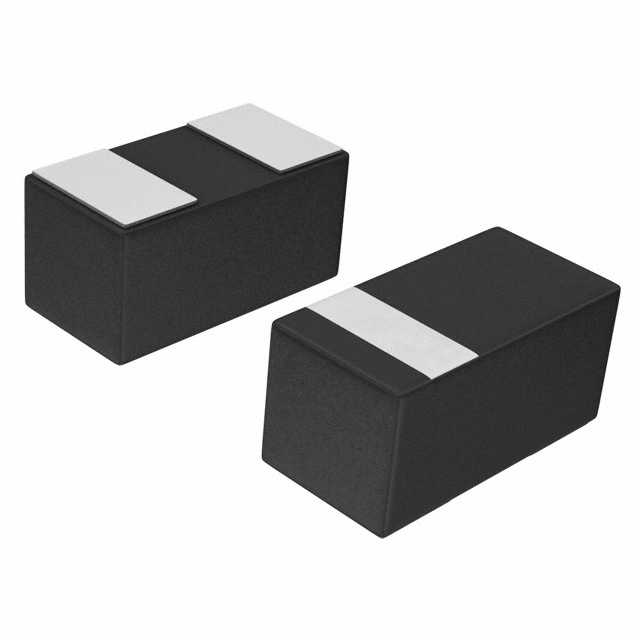

NSR15405NXT5G
DIODE SCHOTTKY 40V 1.5A 2DSNManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
Diode 40 V 1.5A Surface Mount 2-DSN (1.4x0.6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 33 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 85pF @ 2V, 1MHz |
| Current - Average Rectified (Io) | 1.5A |
| Supplier Device Package | 2-DSN (1.4x0.6) |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 590 mV @ 1.5 A |
| Current - Reverse Leakage @ Vr | 75 µA @ 40 V |
