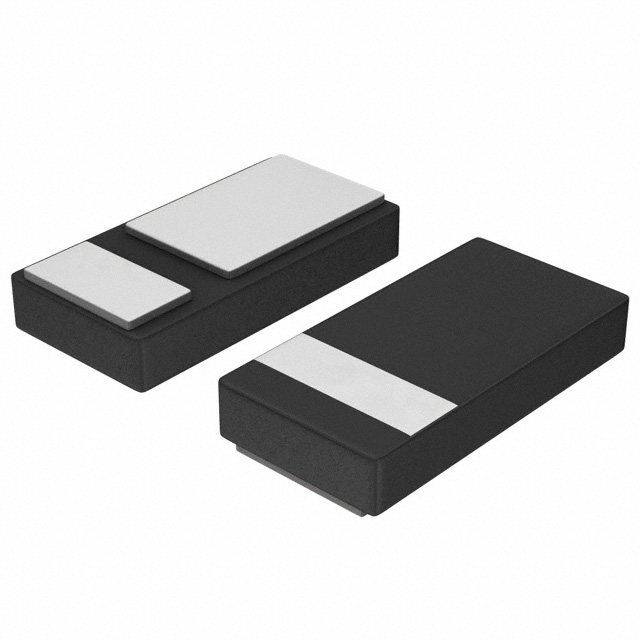

NSR05F30QNXT5G
DIODE SCHOTTKY 30V 500MA 2DSNManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi NSR05F30QNXT5G is a Schottky barrier diode designed for efficient rectification. This component features a 30V reverse voltage rating and a 500mA average rectified current capability. The forward voltage drop is specified at a maximum of 430mV at 500mA, ensuring low power dissipation. Reverse leakage current is minimal, at 75µA at 30V. The device is housed in a compact 0402 (1x0.6mm) 2-DSN package, suitable for high-density surface mount applications. It operates across a junction temperature range of -40°C to 150°C. This diode is commonly employed in power management circuits, mobile devices, and lighting applications where fast switching and low forward voltage are critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1006 Metric) |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | 2-DSN (1x0.6), (0402) |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 430 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 75 µA @ 30 V |
