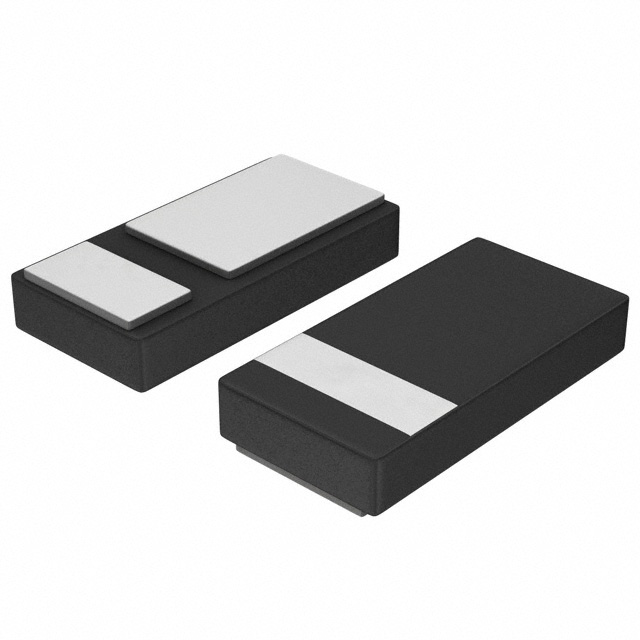

NSR05F30NXT5G
DIODE SCHOTTKY 30V 500MA 2DSNManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
Diode 30 V 500mA Surface Mount 2-DSN (1x0.6), (0402)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 0402 (1006 Metric) |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | 2-DSN (1x0.6), (0402) |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 430 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 75 µA @ 30 V |
