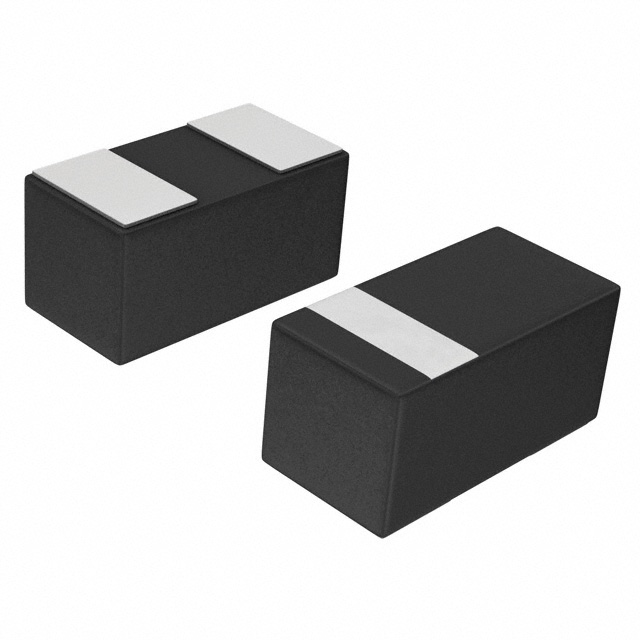

NSR05402NXT5G
DIODE SCHOTTKY 40V 500MA 2DSNManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi NSR05402NXT5G is a Schottky barrier rectifier diode with a 40V reverse voltage rating and 500mA average rectified current capability. This component features a low forward voltage of 620mV at 500mA and a reverse leakage current of 20µA at 40V. The capacitance at 5V and 1MHz is 9.5pF. It is housed in a compact 2-DSN (0.60x0.30) package, also known as 0201 metric, suitable for surface mounting. The operating junction temperature range is -55°C to 150°C. This diode is supplied in Digi-Reel packaging. Its fast switching characteristics make it suitable for applications in power management, mobile devices, and general-purpose rectification.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 9.5pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | 2-DSN (0.60x0.30) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 20 µA @ 40 V |
