NRVTS5100ETFSTWG
DIODE SCHOTTKY 100V 5A 8WDFNManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

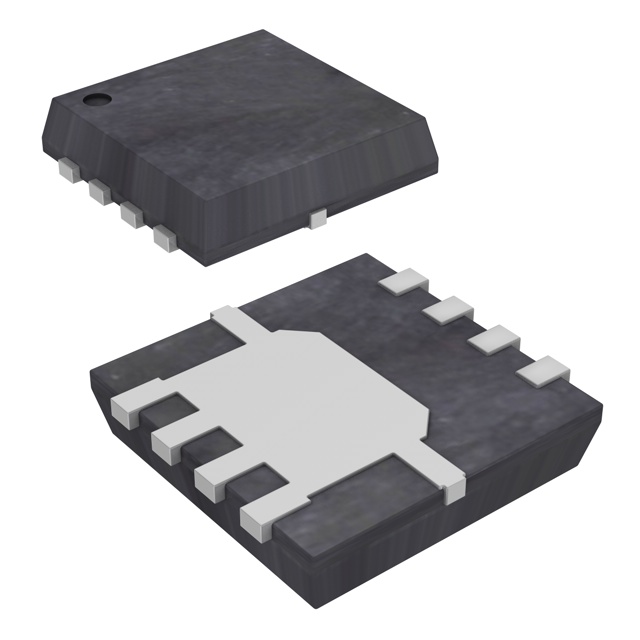

The onsemi NRVTS5100ETFSTWG is a Schottky diode featuring a 100V reverse voltage rating and a 5A average rectified current capability. This device is designed for surface mount applications within an 8-PowerWDFN package, specifically a 3.3x3.3mm footprint. Its low forward voltage drop of 1V at 5A and a reverse leakage of 50 µA at 100V are characteristic of Schottky technology. With a junction operating temperature range of -65°C to 175°C and AEC-Q101 qualification, this component is suitable for demanding automotive applications. The 26.5pF capacitance at 100V and 1MHz, along with its fast recovery speed, makes it efficient for power rectification and switching circuits across various automotive systems. Supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 26.5pF @ 100V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | 8-WDFN (3.3x3.3) |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 5 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 100 V |
| Qualification | AEC-Q101 |
