NRVTS12100PFST3G
DIODE SCHOTTKY 100V 12A TO277-3Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

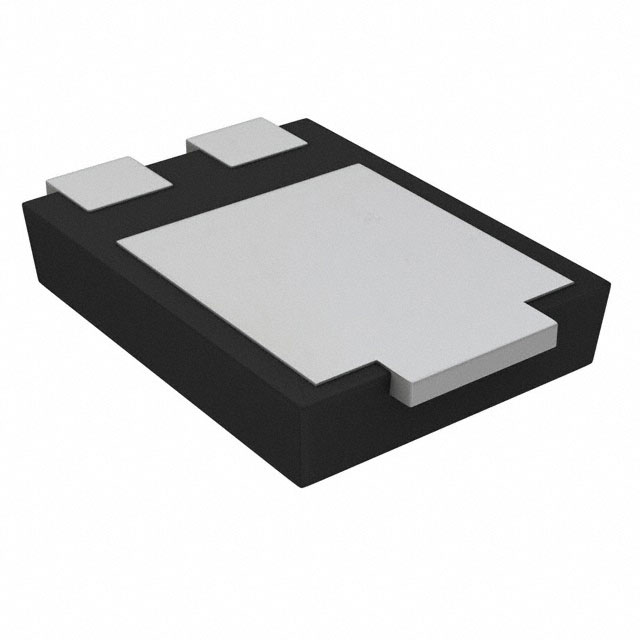

Diode 100 V 12A Surface Mount TO-277-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 930pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 12A |
| Supplier Device Package | TO-277-3 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 12 A |
| Current - Reverse Leakage @ Vr | 120 µA @ 100 V |
| Qualification | AEC-Q101 |
