NRVS2J
DIODE GEN PURP 600V 2A SMBManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

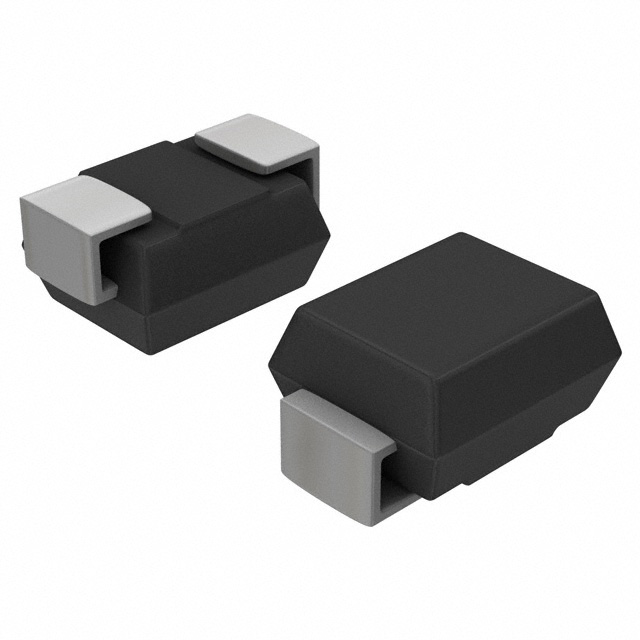

The onsemi NRVS2J is a general-purpose diode designed for demanding applications. This SMB (DO-214AA) package component offers a 600V reverse voltage and a 2A average rectified forward current. Featuring a maximum forward voltage of 1.15V at 2A and a low reverse leakage of 1µA at 600V, the NRVS2J is well-suited for power rectification tasks. Its standard recovery speed and junction operating temperature range of -65°C to 150°C make it reliable in automotive environments, supported by AEC-Q101 qualification. The component exhibits a capacitance of 30pF at 4V and 1MHz. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 2 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 600 V |
| Qualification | AEC-Q101 |
