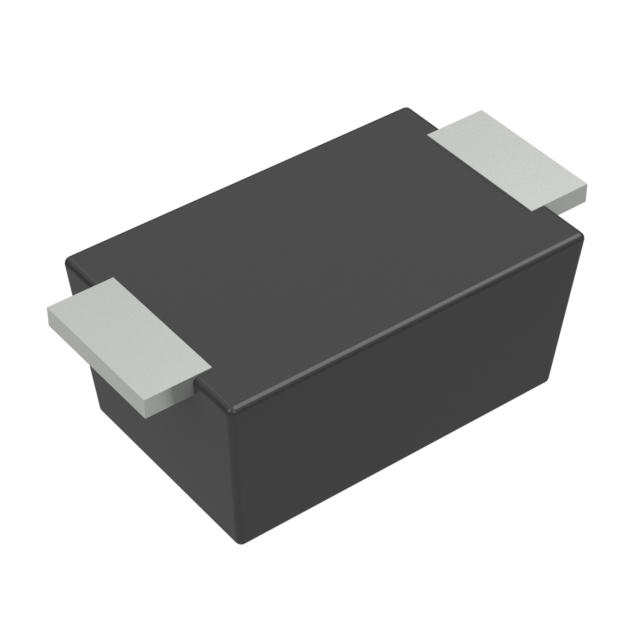

NRVHPRS1DFA
DIODE GP 200V 800MA SOD123FLManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
The onsemi NRVHPRS1DFA is a general-purpose diode designed for efficient rectification in a compact SOD-123FL package. This surface mount component offers a maximum DC reverse voltage of 200V and an average rectified current capability of 800mA. Its fast recovery time of 150 ns is suitable for applications requiring reduced switching losses. The diode exhibits a forward voltage drop of 1.3V at 800mA and a low reverse leakage current of 5 µA at 200V. With a junction operating temperature range of -55°C to 150°C, it is well-suited for power supply circuits, general rectification, and switching applications across various industrial and consumer electronics sectors. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123F |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 800mA |
| Supplier Device Package | SOD-123FL |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 800 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
