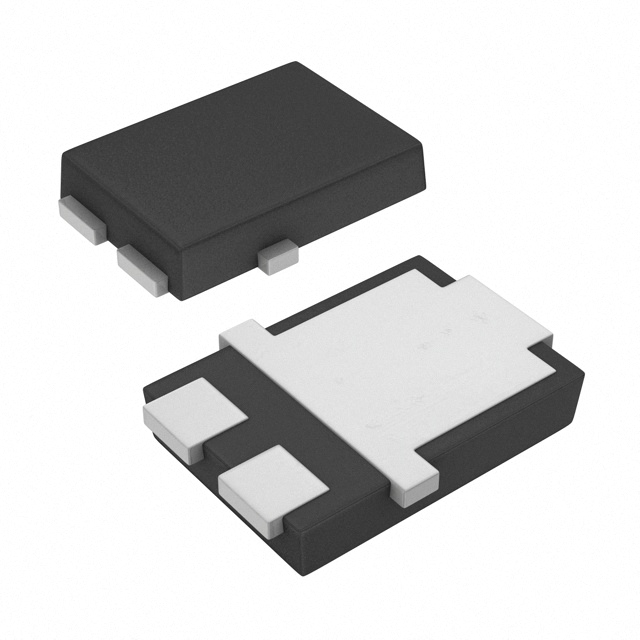

NRVFES6G
DIODE GEN PURP 400V 6A TO277-3Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
Diode 400 V 6A Surface Mount TO-277-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 60pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 6A |
| Supplier Device Package | TO-277-3 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Reverse Leakage @ Vr | 2 µA @ 400 V |
| Qualification | AEC-Q101 |
