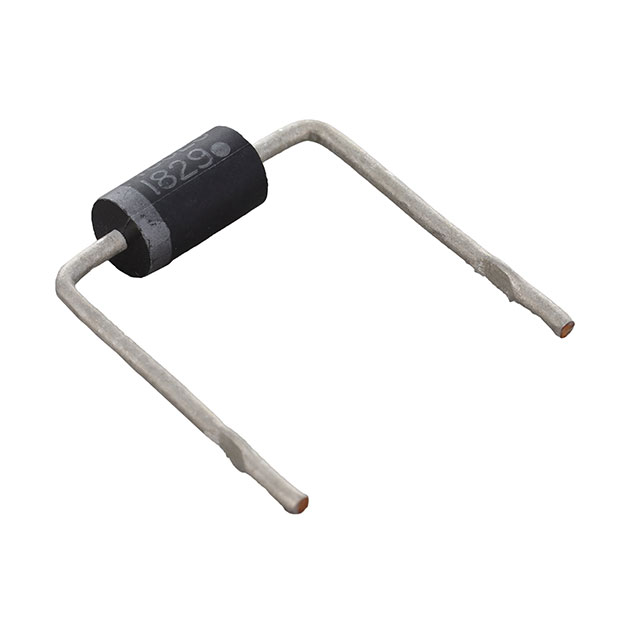

MUR480ESG
DIODE GEN PURP 800V 4A AXIALManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi SWITCHMODE™ MUR480ESG is a 4A, 800V general-purpose diode with a fast recovery time of 100ns. This through-hole component features a low forward voltage drop of 1.85V at 4A and a reverse leakage current of 25 µA at 800V. Operating across a junction temperature range of -65°C to 175°C, it is suitable for applications requiring efficient rectification and high-voltage handling. Common industry applications include power supply rectification, switching power supplies, and general-purpose high-frequency rectification. The component is supplied in bulk packaging.
Additional Information
Series: SWITCHMODE™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Axial, Radial Bend |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 100 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 4A |
| Supplier Device Package | Axial |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.85 V @ 4 A |
| Current - Reverse Leakage @ Vr | 25 µA @ 800 V |
