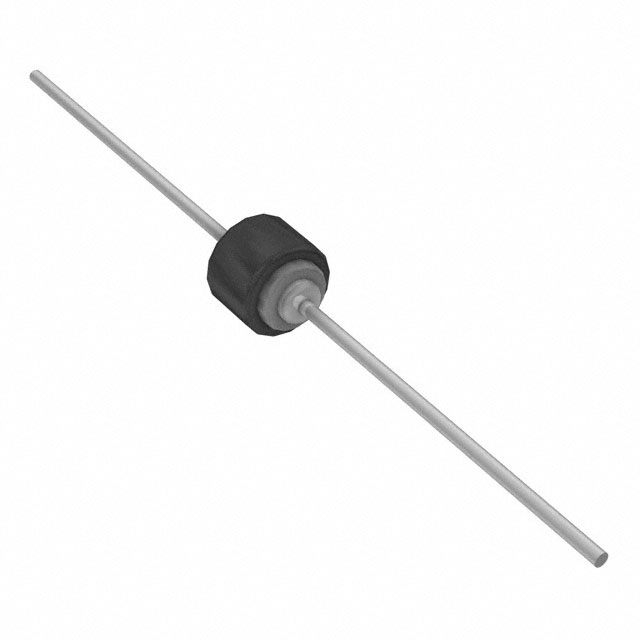

MR754RLG
DIODE GP 400V 6A MICRODE BUTTONManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
The onsemi MR754RLG is a general-purpose silicon rectifier diode featuring a 400V reverse voltage rating and a 6A average forward current capability. This through-hole component, housed in a Microde Button package, offers a forward voltage drop of 900mV at 6A and a reverse leakage current of 25 µA at its maximum reverse voltage. Designed for standard recovery applications, its speed is characterized as >500ns, >200mA (Io). The operating junction temperature range is -65°C to 175°C. This diode is suitable for power supply rectification and general-purpose switching applications within industrial and consumer electronics. The MR754RLG is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Button, Axial |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 6A |
| Supplier Device Package | Microde Button |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 6 A |
| Current - Reverse Leakage @ Vr | 25 µA @ 400 V |
