MMSD4148-D87Z
DIODE GEN PURP 100V 200MA SOD123Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

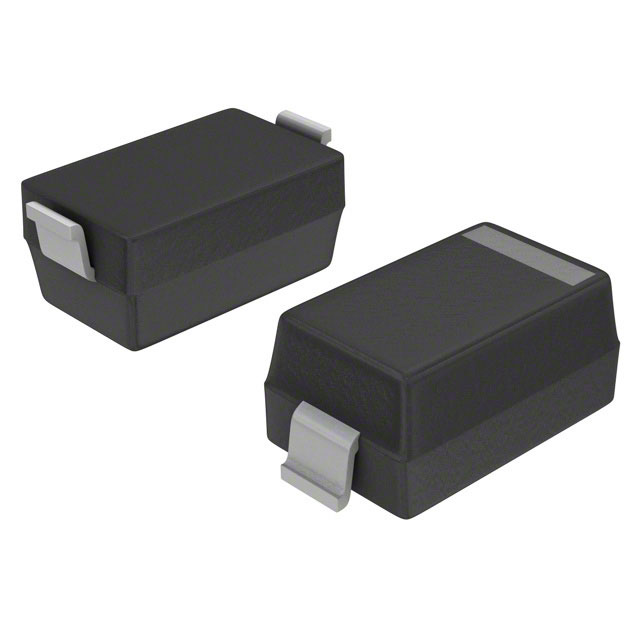

onsemi MMSD4148-D87Z is a general-purpose small-signal diode designed for surface mount applications. This component features a maximum reverse voltage of 100 V and an average rectified forward current of 200 mA. Its low forward voltage drop of 1 V at 10 mA and a reverse leakage current of 5 µA at 75 V, coupled with a fast 4 ns reverse recovery time, make it suitable for a wide range of switching and signal processing tasks. The diode exhibits a typical junction capacitance of 4 pF at 0 V and 1 MHz. Packaged in a compact SOD-123, it operates efficiently across an extended temperature range up to 150°C (Max). This component is commonly utilized in industrial, consumer electronics, and telecommunications sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
