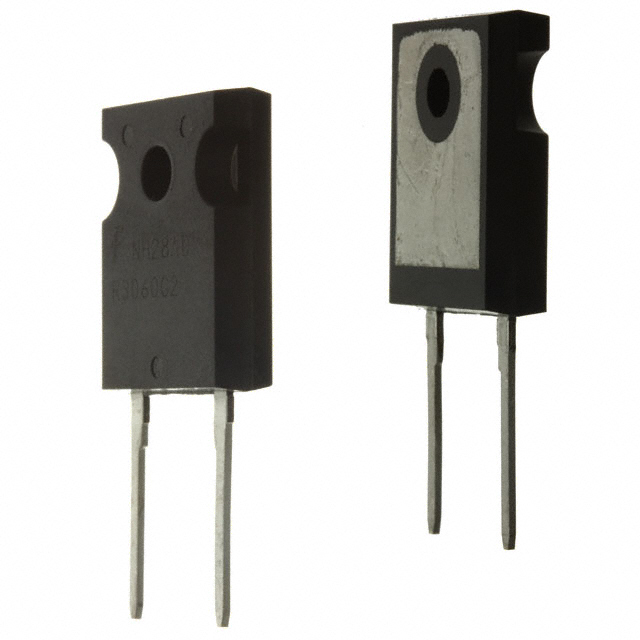

ISL9R3060G2
DIODE GEN PURP 600V 30A TO247-2Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi Stealth™ ISL9R3060G2 is a 600V, 30A general-purpose diode, featuring an avalanche technology for enhanced robustness. This through-hole component, housed in a TO-247-2 package, offers a maximum forward voltage of 2.4V at 30A and a reverse leakage current of 100 µA at 600V. With a fast reverse recovery time of 45 ns, it is suitable for high-frequency switching applications. The operating junction temperature range is -55°C to 175°C. This device finds application in power supplies, industrial motor control, and renewable energy systems.
Additional Information
Series: Stealth™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Technology | Avalanche |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 30 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
Request a Quote
Clients Also Buy

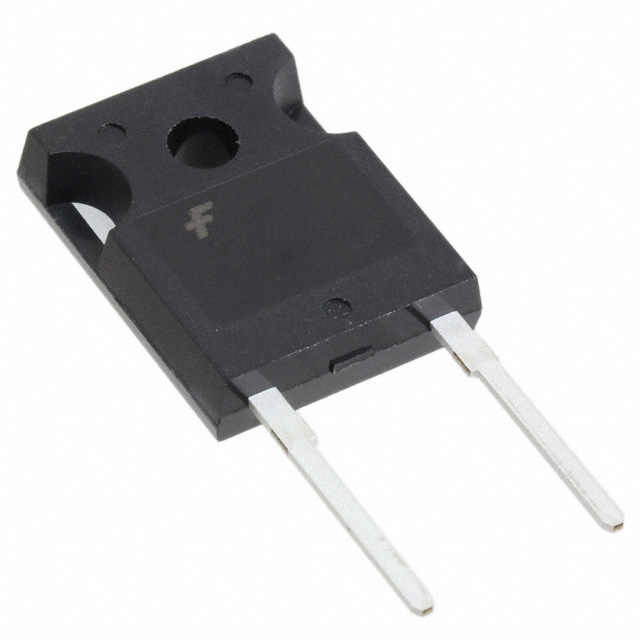

ISL9R3060G2-F085
