FS8M
DIODE GEN PURP 1KV 8A TO277-3Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

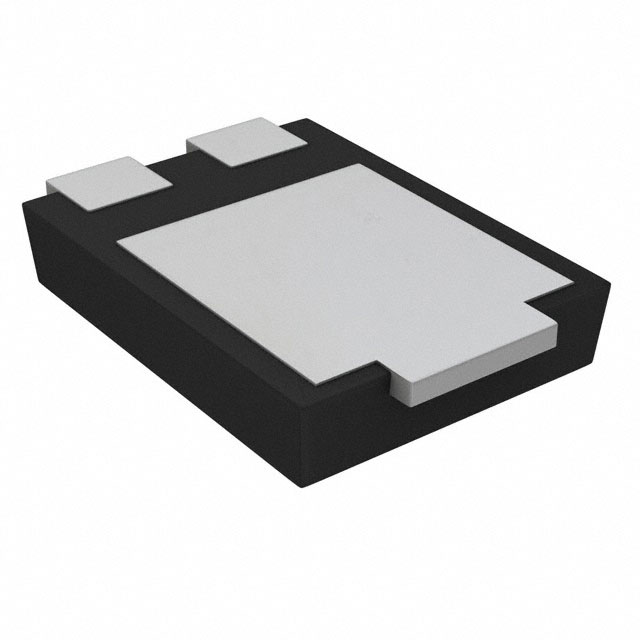

Diode 1000 V 8A Surface Mount TO-277-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 3.37 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 118pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 8A |
| Supplier Device Package | TO-277-3 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 8 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Qualification | AEC-Q101 |
