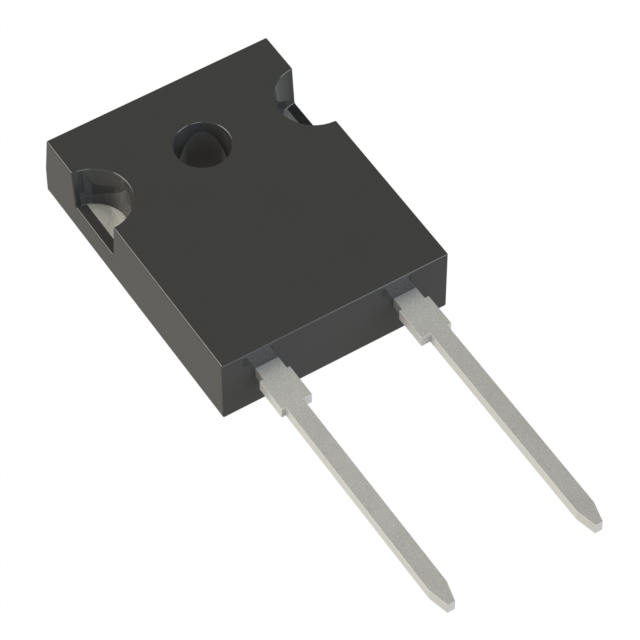

FFSH30120A-F155
DIODE SIL CARB 1.2KV 46A TO247-2Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
Diode 1200 V 46A Through Hole TO-247-2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 1740pF @ 1V, 100kHz |
| Current - Average Rectified (Io) | 46A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 30 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 1200 V |
Request a Quote
