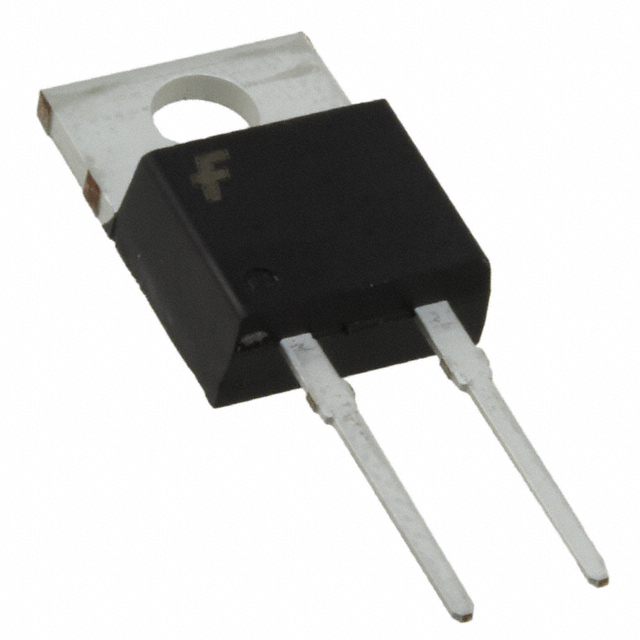

FFP30S60STU
DIODE GEN PURP 600V 30A TO220-2LManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
The onsemi Stealth™ FFP30S60STU is a 600V, 30A general-purpose diode designed for high-efficiency rectification. Featuring a fast recovery time of 40 ns, this component is suitable for applications requiring reduced switching losses. Its TO-220-2L through-hole package ensures robust thermal performance and ease of integration into existing board layouts. With a maximum forward voltage (Vf) of 2.6V at 30A and a reverse leakage current of 100 µA at 600V, the FFP30S60STU offers reliable operation across a wide temperature range of -65°C to 150°C. This diode is commonly utilized in power supply units, motor control, and industrial automation systems.
Additional Information
Series: Stealth™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | TO-220-2L |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.6 V @ 30 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
