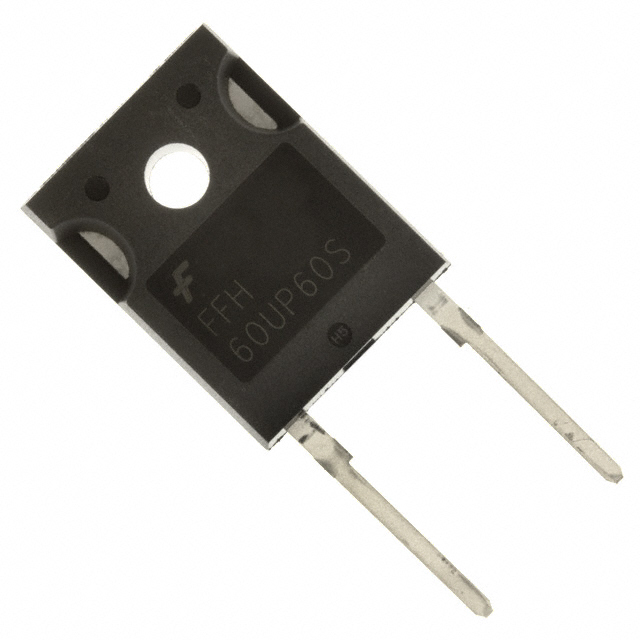

FFH60UP60S
DIODE GEN PURP 600V 60A TO247-2Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi FFH60UP60S is a 600V, 60A general-purpose diode packaged in a TO-247-2 through-hole configuration. This device features a maximum forward voltage of 1.7V at 60A and a reverse leakage current of 100 µA at 600V. With a fast recovery time of 80 ns, it is suitable for applications requiring efficient switching. The operating junction temperature range is -65°C to 150°C. This component finds application in power supply units, motor control, and industrial power systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 80 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 60A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 60 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
