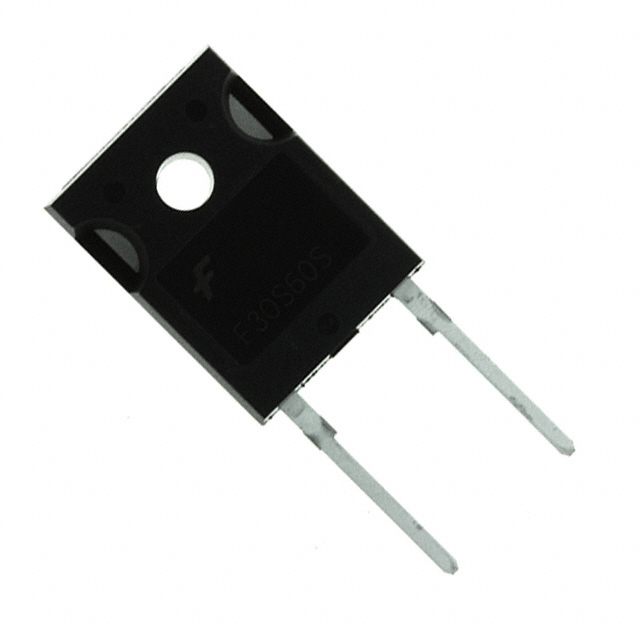

FFH30S60STU
DIODE GEN PURP 600V 30A TO247-2Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi FFH30S60STU is a general-purpose diode with a maximum DC reverse voltage of 600 V and an average rectified forward current of 30 A. This device features a fast reverse recovery time of 40 ns, categorized as Fast Recovery =< 500ns, > 200mA (Io). The forward voltage drop at 30 A is a maximum of 2.6 V. Operating temperature ranges from -65°C to 150°C. Housed in a TO-247-2 package, it is designed for through-hole mounting. The reverse leakage current at 600 V is 100 µA. This component is utilized in power supply applications, motor control, and industrial power systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.6 V @ 30 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
