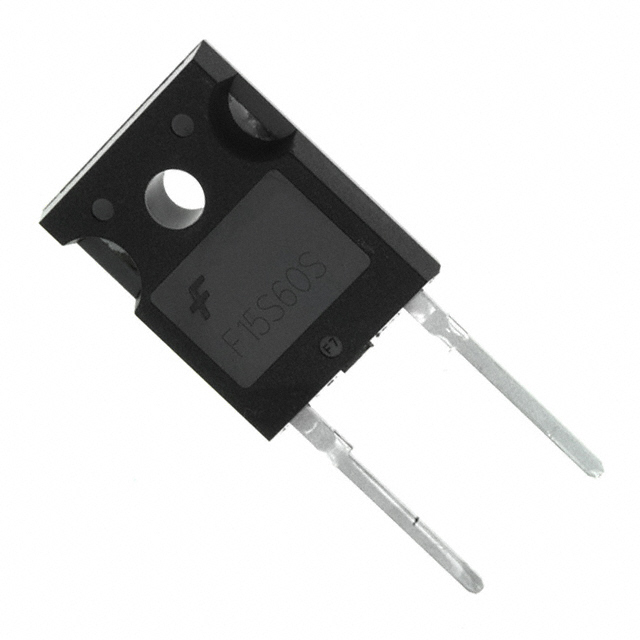

FFH15S60STU
DIODE GEN PURP 600V 15A TO247-2Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi's FFH15S60STU is a general-purpose diode with a 600V reverse voltage rating and a 15A average rectified current capability. This through-hole component, housed in a TO-247-2 package, features a fast recovery time of 35 ns, suitable for applications demanding efficient switching. It exhibits a maximum forward voltage of 2.6V at 15A and a reverse leakage current of 100 µA at its maximum reverse voltage. The operating junction temperature range is -65°C to 150°C. This device is commonly utilized in power supplies, motor control, and lighting applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.6 V @ 15 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
