ES1A
DIODE GEN PURP 50V 1A DO214ACManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

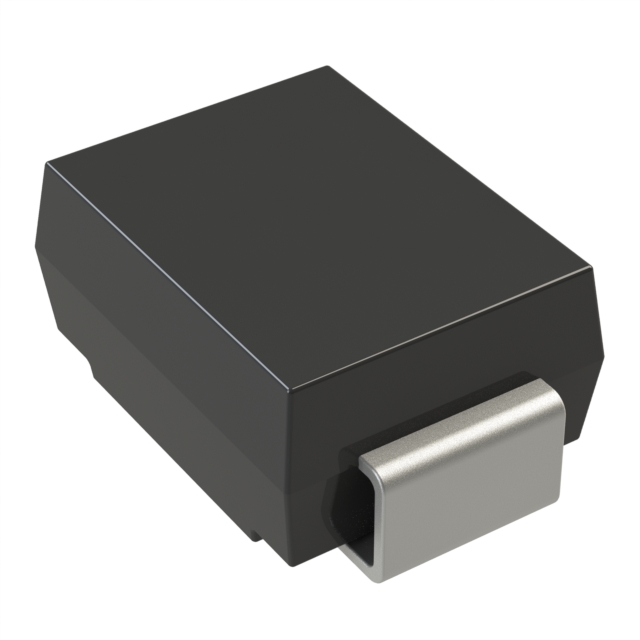

Diode 50 V 1A Surface Mount DO-214AC (SMA)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 15 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 7pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 50 V |
