EGP30B
DIODE GEN PURP 100V 3A DO201ADManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

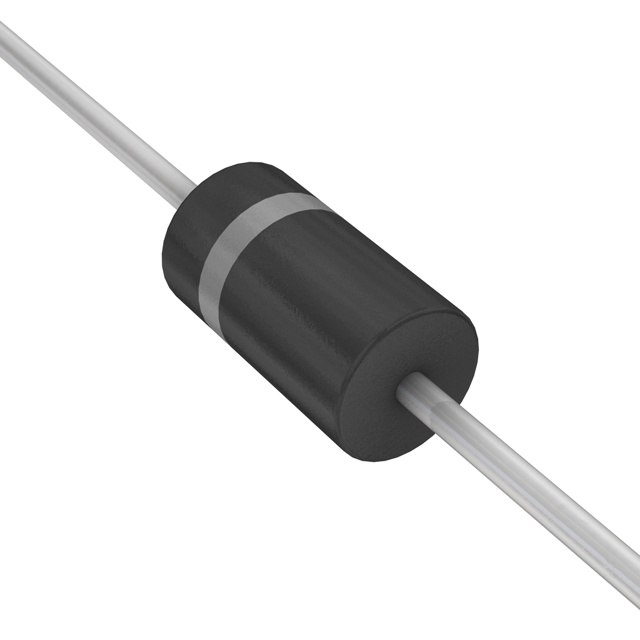

The onsemi EGP30B is a general-purpose diode designed for demanding applications. This axial-leaded device features a 100V reverse voltage rating and a 3A average rectified current capability. Its fast recovery time of 50 ns, coupled with a forward voltage drop of 950 mV at 3A, makes it suitable for power supply rectification and switching applications. The diode exhibits a low reverse leakage current of 5 µA at 100V and a junction capacitance of 95pF at 4V and 1MHz. Operating across a temperature range of -65°C to 150°C, the EGP30B is housed in a DO-201AD package and is supplied on tape and reel. This component finds utility in industrial power control, automotive electronics, and consumer goods.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 95pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
