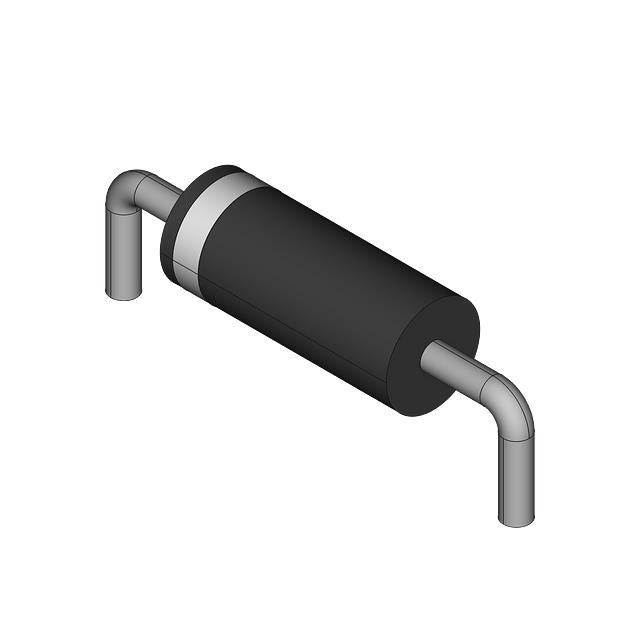

EGP20KTA
DIODE GEN PURP 800V 2A DO15Manufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
Diode 800 V 2A Through Hole DO-15
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-204AC, DO-15, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 45pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | DO-15 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 2 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
Request a Quote
