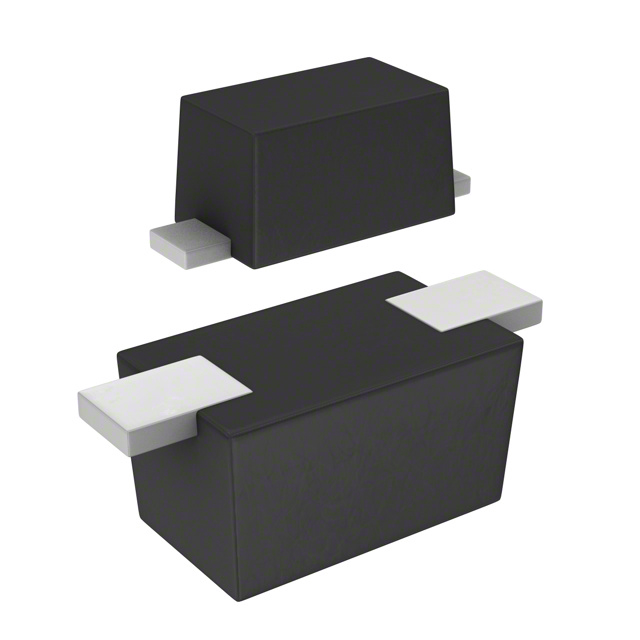

DSP10G-TR-E
DIODE GEN PURP 600V 1A 2SHPManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi's DSP10G-TR-E is a general-purpose rectifier diode designed for demanding electronic applications. Featuring a 600V reverse voltage rating and a 1A average rectified forward current capability, this component excels in power supply rectification, voltage clamping, and as a freewheeling diode. The device offers a low forward voltage drop of 1.1V at 1A and a minimal reverse leakage current of 10 µA at 600V. Its surface mount DO-219AA package, delivered in Tape & Reel, ensures efficient assembly on PCBs. The standard recovery speed, with a specified recovery time greater than 500ns for currents above 200mA, makes it suitable for a wide range of switching frequencies. The DSP10G-TR-E operates within a junction temperature range up to 150°C (Max), finding utility in industrial automation, consumer electronics, and telecommunications equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-219AA |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | 2-SHP |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
