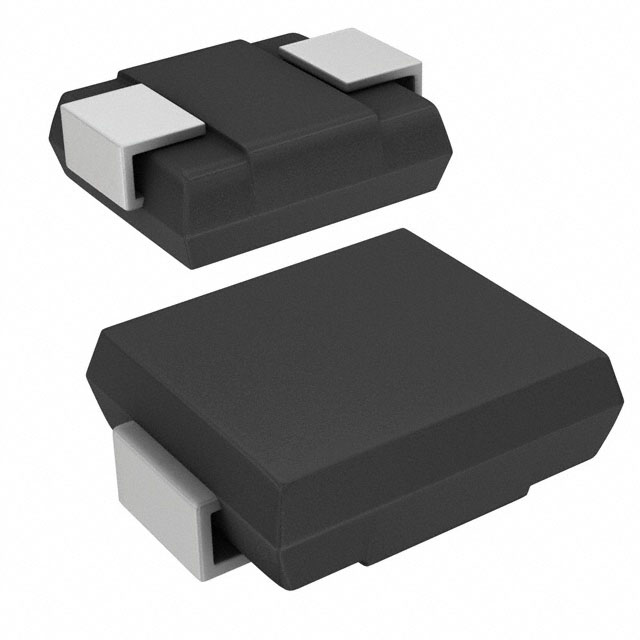

DSM10G-TR-E
DIODE GEN PURP 600V 1A SMDManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi DSM10G-TR-E is a General Purpose Diode with a 600V reverse voltage rating and a 1A average rectified current capability. This surface mount device offers a maximum forward voltage of 1.1V at 1A and a reverse leakage current of 10µA at its peak reverse voltage. Designed for standard recovery applications with a speed exceeding 500ns, it operates efficiently up to a junction temperature of 150°C. The component is supplied in a 2-SMD, J-Lead package, presented on tape and reel. Its robust specifications make it suitable for power supply rectification, general switching applications, and power management circuits across industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | SMD |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
