DSK10E
DIODE GEN PURP 400V 1A AXIALManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More

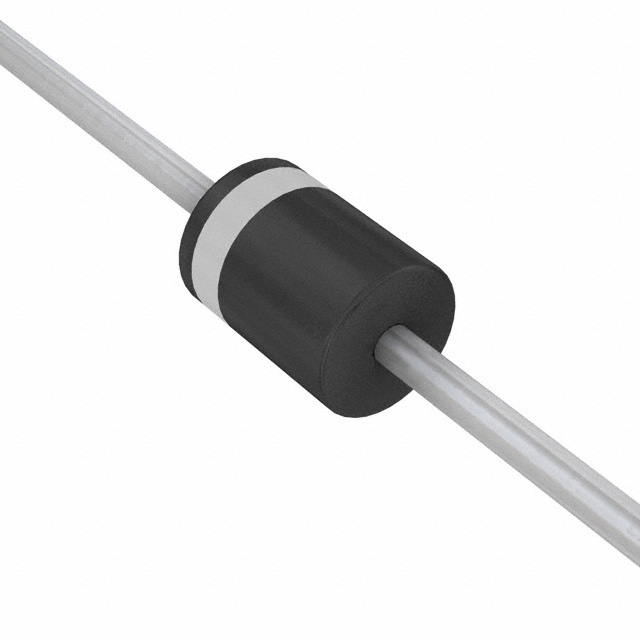

onsemi DSK10E is a general-purpose rectifier diode with a 400V reverse voltage rating and 1A average rectified current capability. This axial leaded component, R-1 package, features a maximum forward voltage of 1.1V at 1A and a low reverse leakage of 10 µA at its maximum reverse voltage. The DSK10E utilizes standard recovery technology, with a typical recovery time exceeding 500ns for currents greater than 200mA. It is designed for through-hole mounting and operates efficiently up to a junction temperature of 150°C. This component finds application in power supplies, general rectification, and protection circuits across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | R-1, Axial |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | - |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
