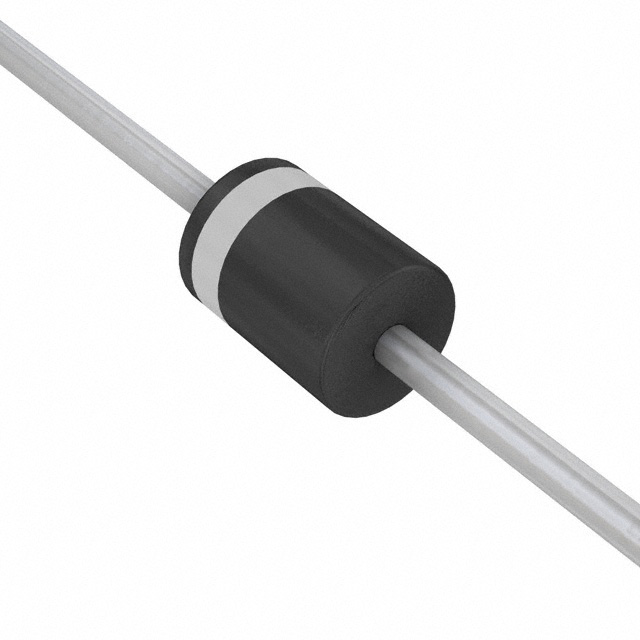

DSK10C-AT1
DIODE GEN PURP 200V 1A AXIALManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
The onsemi DSK10C-AT1 is a general-purpose diode with a maximum repetitive reverse voltage of 200V and an average rectified forward current handling capability of 1A. This through-hole component features a standard recovery speed exceeding 500ns for currents above 200mA. The forward voltage drop is specified at a maximum of 1.1V at 1A, with a reverse leakage current of 10µA at its maximum rated reverse voltage. Manufactured by onsemi, this device is packaged in R-1, Axial format and supplied on tape and reel. It is suitable for various applications including power supplies, consumer electronics, and industrial control systems. The maximum operating junction temperature is 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | R-1, Axial |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | - |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
