BAT54XV2

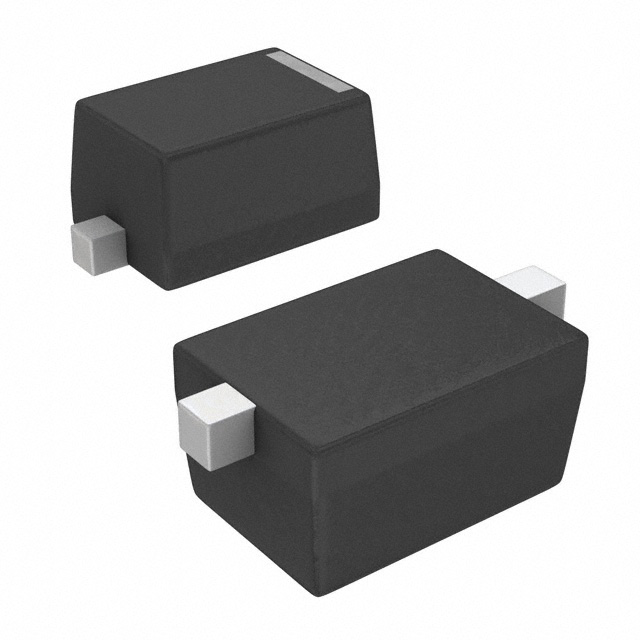

DIODE SCHOTTKY 30V 200MA SOD523FManufacturer: onsemi
Categories: Single Diodes
Quality Control: Learn More
onsemi BAT54XV2 is a Schottky diode designed for efficient rectification in small signal applications. This component, packaged in an SOD-523F (SC-79), offers a maximum reverse voltage (Vr) of 30V and an average rectified forward current (Io) of 200mA. Its low forward voltage (Vf) of 800mV at 100mA and a reverse leakage current of 2µA at 25V contribute to its high performance. With a reverse recovery time (trr) of 5ns, the BAT54XV2 is suitable for high-frequency switching. The operating junction temperature range extends to 125°C (Max). This device is commonly utilized in power management, consumer electronics, and telecommunications sectors. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-79, SOD-523F |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | SOD-523F |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
