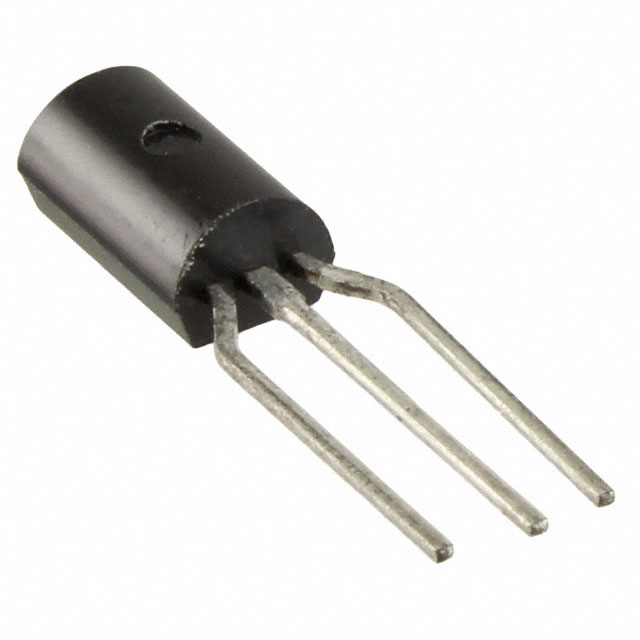

ZTX749A
TRANS PNP 35V 2A TO226Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
The onsemi ZTX749A is a PNP bipolar junction transistor (BJT) designed for general-purpose applications. This component offers a collector-emitter breakdown voltage of 35V and a continuous collector current capability of up to 2A. It features a minimum DC current gain (hFE) of 100 at 1A and 2V, with a transition frequency of 100MHz. The ZTX749A dissipates a maximum power of 1W and has a collector cutoff current (ICBO) of 100nA. Saturation voltage (Vce) is specified at a maximum of 500mV at 200mA collector current and appropriate base drive. The device is housed in a TO-226 package, suitable for through-hole mounting. This transistor is commonly utilized in industrial automation, consumer electronics, and telecommunications equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1A, 2V |
| Frequency - Transition | 100MHz |
| Supplier Device Package | TO-226 |
| Current - Collector (Ic) (Max) | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 1 W |
