TN2907A
TRANS PNP 60V 0.8A TO226-3Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More

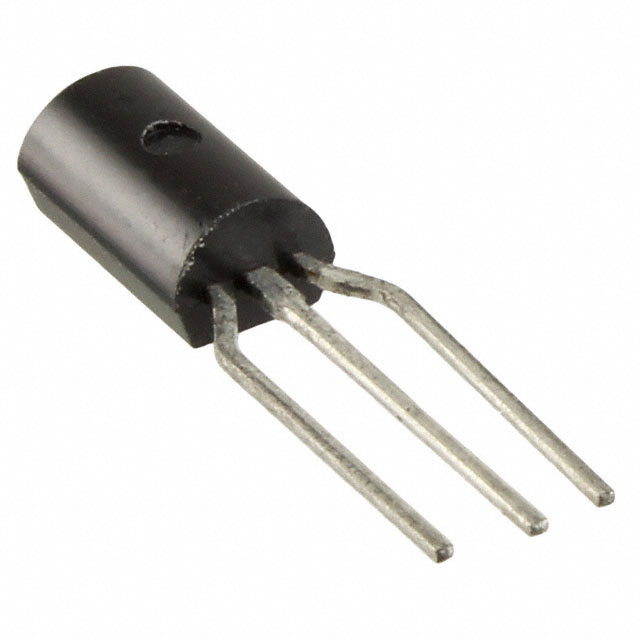

onsemi PNP Bipolar Junction Transistor, part number TN2907A, is a general-purpose device for discrete applications. This PNP transistor features a maximum collector current (Ic) of 800 mA and a collector-emitter breakdown voltage (Vce) of 60 V. With a power dissipation of 625 mW and a minimum DC current gain (hFE) of 100 at 150 mA and 10 V, the TN2907A is suitable for switching and amplification circuits. The device operates within a temperature range of -55°C to 150°C and is presented in a TO-226-3 (TO-92-3) through-hole package. It finds application in various industrial, consumer electronics, and automotive sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Frequency - Transition | - |
| Supplier Device Package | TO-226-3 |
| Current - Collector (Ic) (Max) | 800 mA |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 625 mW |
