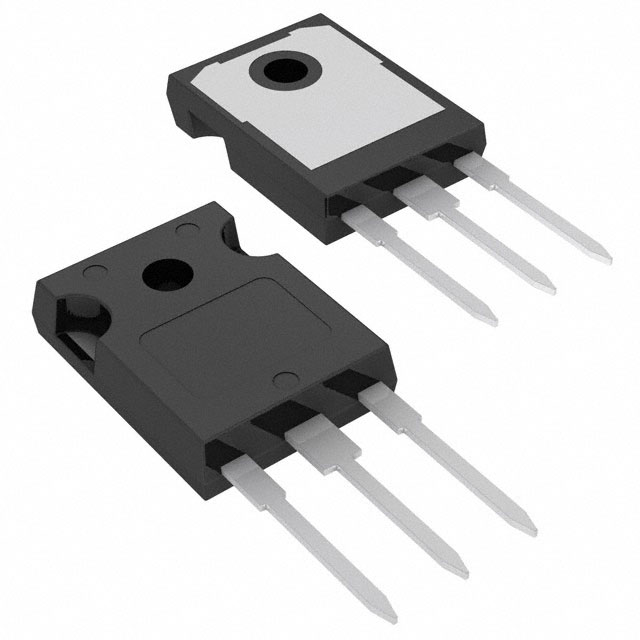

TIP33CG
TRANS NPN 100V 10A TO247-3Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 100 V 10 A 3MHz 80 W Through Hole TO-247-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 2.5A, 10A |
| Current - Collector Cutoff (Max) | 700µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 3A, 4V |
| Frequency - Transition | 3MHz |
| Supplier Device Package | TO-247-3 |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 80 W |
Request a Quote
