TIP2955G

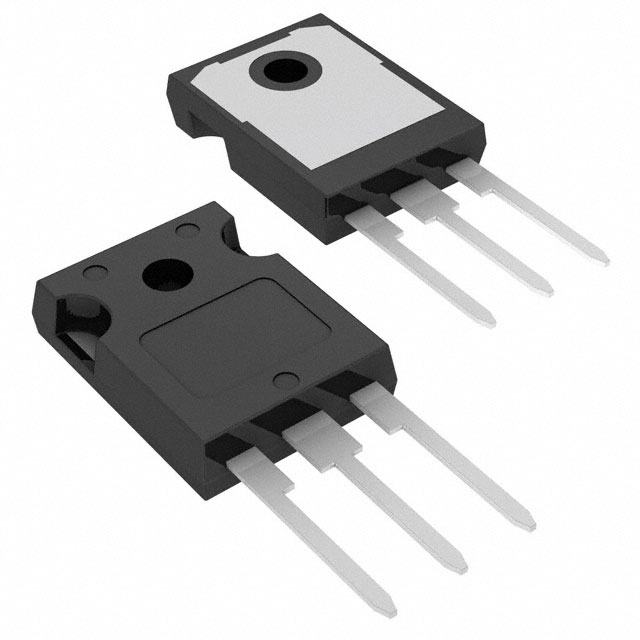

TRANS PNP 60V 15A TO247-3Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
The onsemi TIP2955G is a PNP bipolar junction transistor (BJT) designed for power switching and amplification applications. It features a collector-emitter breakdown voltage of 60V and a continuous collector current capability of 15A, with a maximum power dissipation of 90W. This device offers a minimum DC current gain (hFE) of 20 at 4A collector current and 4V collector-emitter voltage, and a transition frequency of 2.5MHz. The saturation voltage (Vce(sat)) is a maximum of 3V at 3.3A base current and 10A collector current. Packaged in a TO-247-3 through-hole configuration, the TIP2955G operates across a wide temperature range of -65°C to 150°C. Its robust performance makes it suitable for use in power supplies, audio amplifiers, and general-purpose power switching circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 3.3A, 10A |
| Current - Collector Cutoff (Max) | 700µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 4A, 4V |
| Frequency - Transition | 2.5MHz |
| Supplier Device Package | TO-247-3 |
| Current - Collector (Ic) (Max) | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 90 W |
