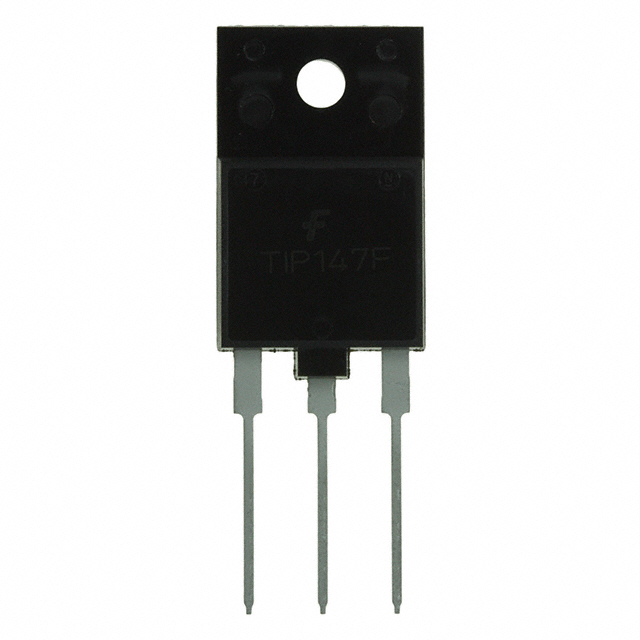

TIP147FTU
TRANS PNP DARL 100V 10A TO3PFManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi TIP147FTU is a PNP Darlington bipolar transistor engineered for robust performance. This component boasts a collector-emitter breakdown voltage of 100V and a continuous collector current capability of 10A, with a maximum power dissipation of 125W. Featuring a high DC current gain (hFE) of 1000 minimum at 5A and 4V, it offers significant amplification. The saturation voltage (Vce Sat) is a maximum of 3V at 40mA and 10A. Encased in a TO-3PF package for through-hole mounting, this device is suitable for applications in power switching and amplification circuits within industrial and automotive sectors. Operating temperature range extends to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3 Full Pack |
| Mounting Type | Through Hole |
| Transistor Type | PNP - Darlington |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 10A |
| Current - Collector Cutoff (Max) | 2mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 4V |
| Frequency - Transition | - |
| Supplier Device Package | TO-3PF |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 125 W |
