PCP1103-TD-H
TRANS PNP 30V 1.5A PCPManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More

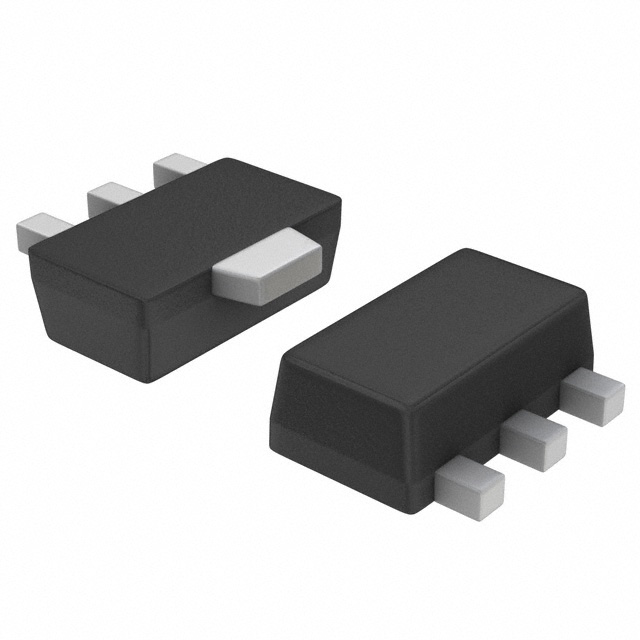

The onsemi PCP1103-TD-H is a PNP bipolar junction transistor (BJT) designed for surface mount applications. This component offers a collector-emitter breakdown voltage (Vce(max)) of 30 V and a continuous collector current (Ic(max)) of 1.5 A. It features a transition frequency (fT) of 450 MHz and a maximum power dissipation of 3.5 W. The DC current gain (hFE) is rated at a minimum of 200 at 100 mA collector current and 2 V collector-emitter voltage. Saturation voltage (Vce(sat)) is specified at a maximum of 375 mV for 750 mA collector current and 15 mA base current. This transistor is supplied in a TO-243AA package, commonly known as PCP, and is delivered on tape and reel. Applications for this device span industrial and consumer electronics requiring efficient switching and amplification.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 375mV @ 15mA, 750mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V |
| Frequency - Transition | 450MHz |
| Supplier Device Package | PCP |
| Current - Collector (Ic) (Max) | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 3.5 W |
