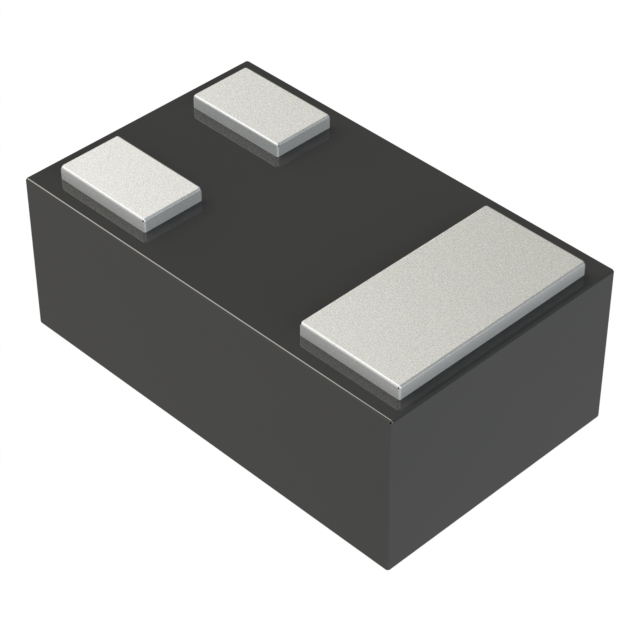

NST3904MX2T5G
SS SOT883 GP XSTR NPN PBFRManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 40 V 200 mA 250MHz 165 mW Surface Mount 3-X2DFN (1x0.6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 50nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Frequency - Transition | 250MHz |
| Supplier Device Package | 3-X2DFN (1x0.6) |
| Current - Collector (Ic) (Max) | 200 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Power - Max | 165 mW |
