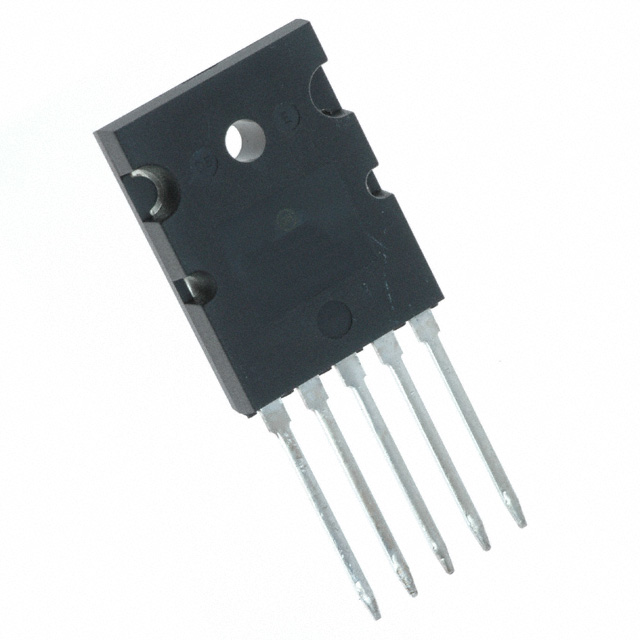

NJL21193DG
TRANS PNP 250V 16A TO264Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi NJL21193DG is a PNP bipolar junction transistor (BJT) designed for high-power applications. This component offers a collector-emitter breakdown voltage of 250V and a maximum continuous collector current of 16A. With a power dissipation capability of 200W, it is suitable for demanding switching and amplification tasks. The transistor features a minimum DC current gain (hFE) of 25 at 8A collector current and 5V collector-emitter voltage. Its transition frequency is 4MHz, and it is packaged in a TO-264 through-hole configuration. The NJL21193DG is utilized in power supply circuits, audio amplifiers, and motor control applications within the industrial and consumer electronics sectors. The maximum collector cutoff current is 100µA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-264-5 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 3.2A, 16A |
| Current - Collector Cutoff (Max) | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 8A, 5V |
| Frequency - Transition | 4MHz |
| Supplier Device Package | TO-264 |
| Current - Collector (Ic) (Max) | 16 A |
| Voltage - Collector Emitter Breakdown (Max) | 250 V |
| Power - Max | 200 W |
