MPSW45AG

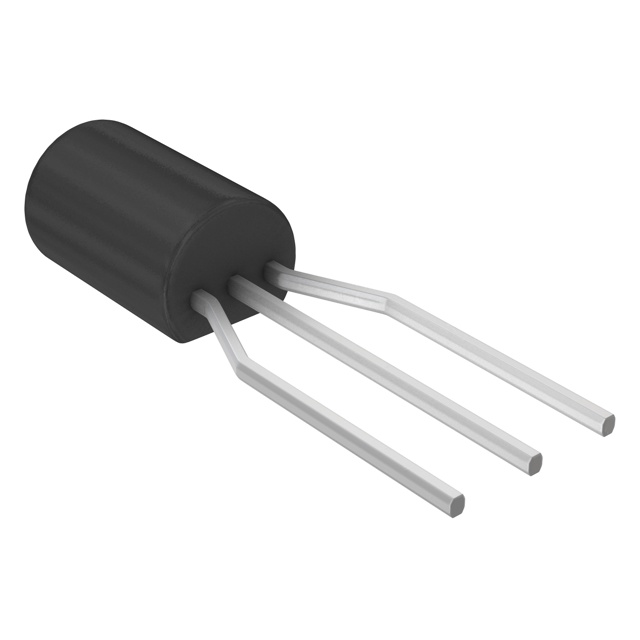

TRANS NPN DARL 50V 1A TO92Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi's MPSW45AG is an NPN Darlington bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. This device features a 50V collector-emitter breakdown voltage and a continuous collector current capability of 1A. With a high DC current gain (hFE) of 25000 minimum at 200mA and 5V, and a transition frequency of 100MHz, the MPSW45AG is suitable for use in various industrial and consumer electronics, including power supply circuits, relay drivers, and audio amplification stages. The transistor is housed in a standard TO-92 (TO-226) package, facilitating through-hole mounting. It operates across a temperature range of -55°C to 150°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 Long Body |
| Mounting Type | Through Hole |
| Transistor Type | NPN - Darlington |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 2mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25000 @ 200mA, 5V |
| Frequency - Transition | 100MHz |
| Supplier Device Package | TO-92 (TO-226) |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 1 W |
