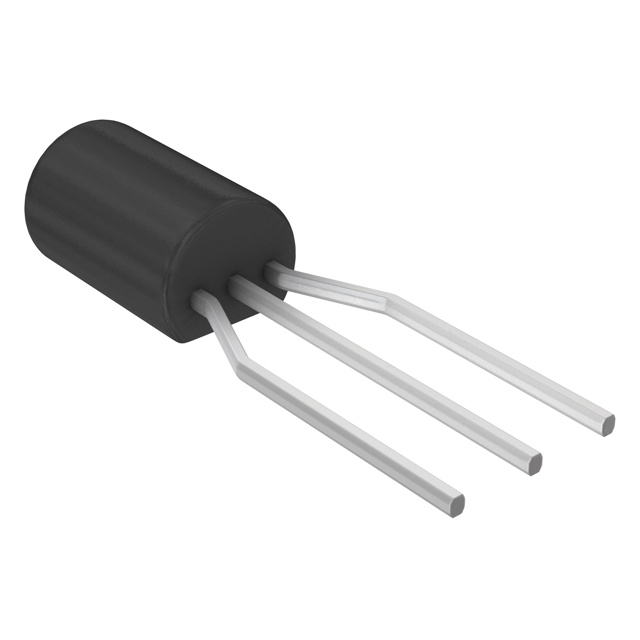

MPS6727G
TRANS PNP 40V 1A TO92Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi's MPS6727G is a PNP bipolar junction transistor designed for general-purpose amplification and switching applications. This component offers a collector-emitter breakdown voltage of 40V and a continuous collector current capability of 1A, with a maximum power dissipation of 1W. The DC current gain (hFE) is a minimum of 50 at 1A collector current and 1V collector-emitter voltage. Saturation voltage (Vce(sat)) is specified at a maximum of 500mV with 100mA base current and 1A collector current. The transistor features a low collector cutoff current (ICBO) of 100nA. Housed in a TO-92 (TO-226) through-hole package, the MPS6727G operates across a wide temperature range of -55°C to 150°C, making it suitable for demanding environments in industries such as industrial control and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 Long Body |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 1A, 1V |
| Frequency - Transition | - |
| Supplier Device Package | TO-92 (TO-226) |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Power - Max | 1 W |
