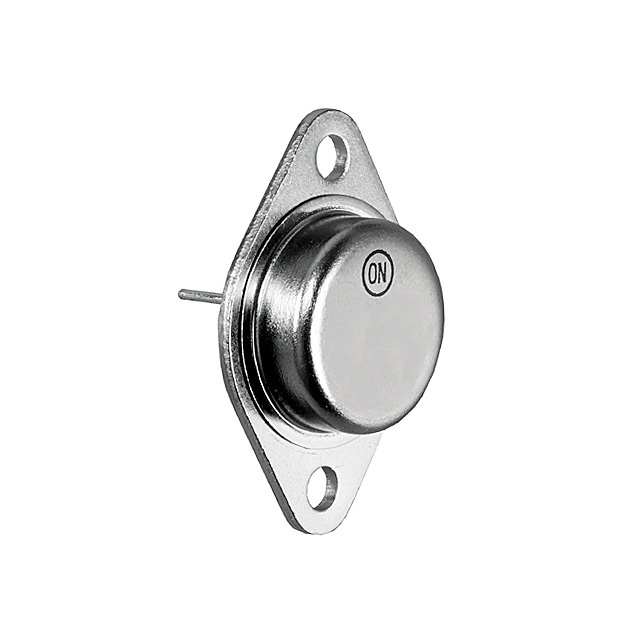

MJ4502G
TRANS PNP 100V 30A TO204Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 100 V 30 A 2MHz 200 W Through Hole TO-204 (TO-3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 800mV @ 750mA, 7.5A |
| Current - Collector Cutoff (Max) | 1mA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 7.5A, 2V |
| Frequency - Transition | 2MHz |
| Supplier Device Package | TO-204 (TO-3) |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 200 W |
