MCH6202-TL-E
TRANS NPN 30V 1.5A 6MCPHManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
The onsemi MCH6202-TL-E is an NPN bipolar junction transistor designed for surface mount applications. This component features a collector-emitter breakdown voltage of 30V and can handle a continuous collector current of up to 1.5A. With a transition frequency of 500MHz and a maximum power dissipation of 1W, it is suitable for various signal amplification and switching tasks. The device exhibits a minimum DC current gain (hFE) of 200 at 100mA and 2V, and a Vce(sat) of 225mV at 15mA and 750mA. The collector cutoff current is a maximum of 100nA. Supplied in a 6-MCPH package, this transistor is utilized in industries such as consumer electronics and industrial automation. It is delivered on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

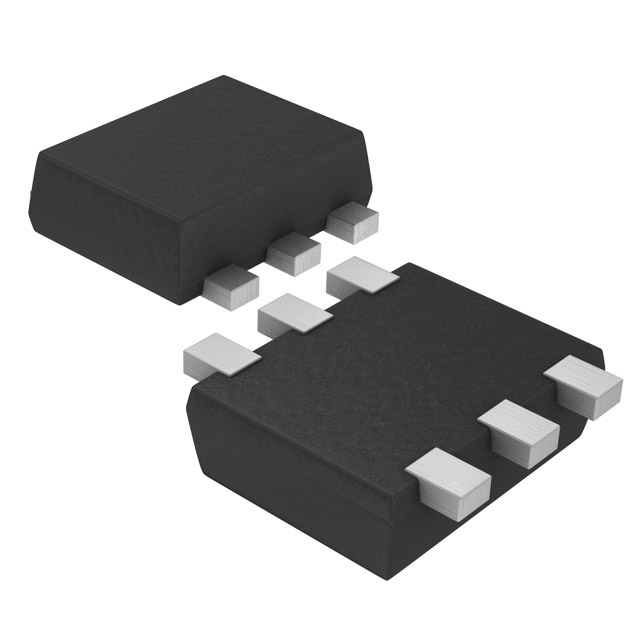

| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 225mV @ 15mA, 750mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V |
| Frequency - Transition | 500MHz |
| Supplier Device Package | 6-MCPH |
| Current - Collector (Ic) (Max) | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 1 W |
